Skydose

• In compliance with the CEI 61526 standard about the measure of personal dose equivalent.

• The battery of the Saphydose ?i RT teledosimeters provides up to 2 years of autonomy capability, with only 1 AA battery.

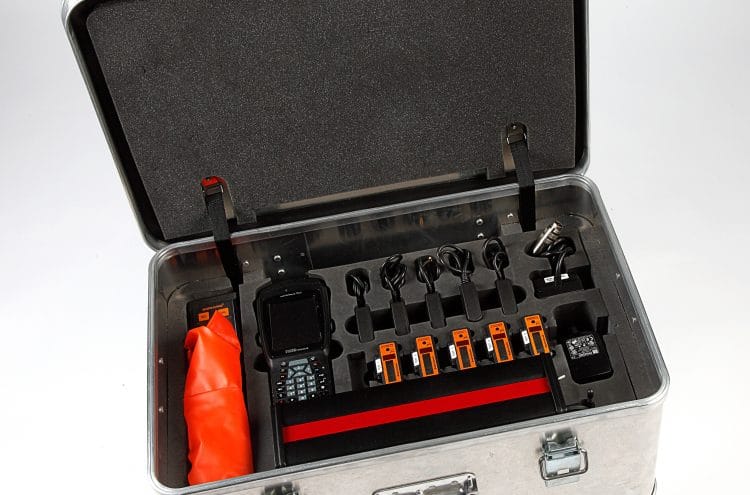

• The Skydose system can be installed and configured in a few minutes, and be safely stored in a ruggedized pelicase. Several systems can operate simultaneously, without interference.

• The Skydose system provides real-time, remote & simultaneous monitoring of the Saphydose ?i RT dosimeters, for the team to react immediately in case of emergency.

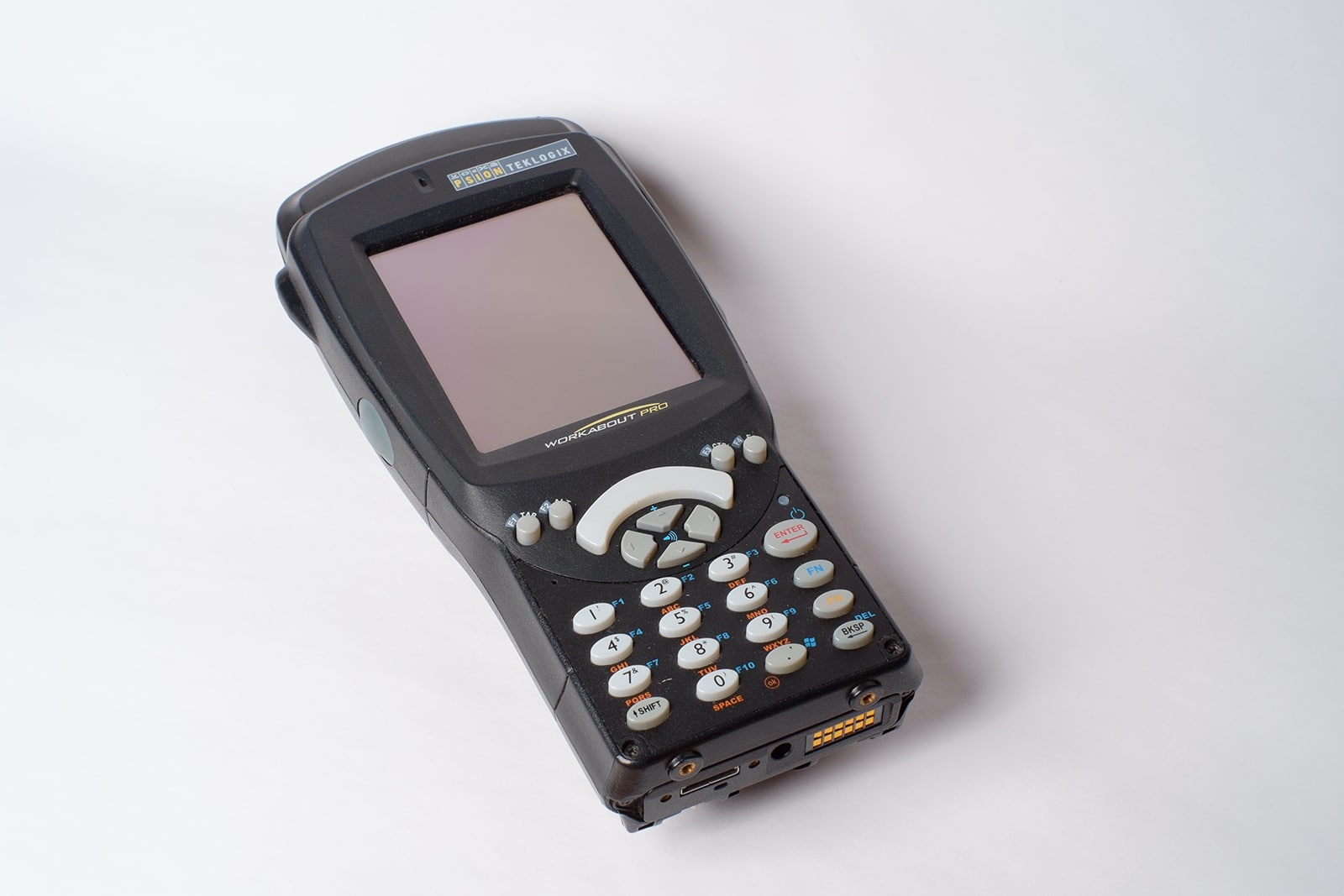

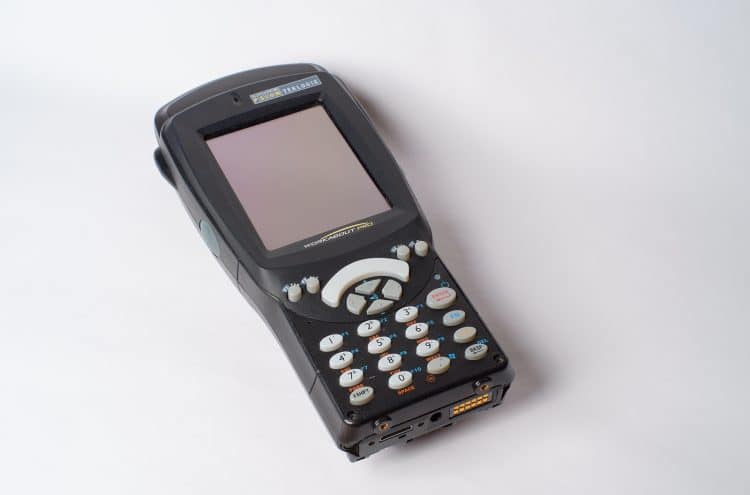

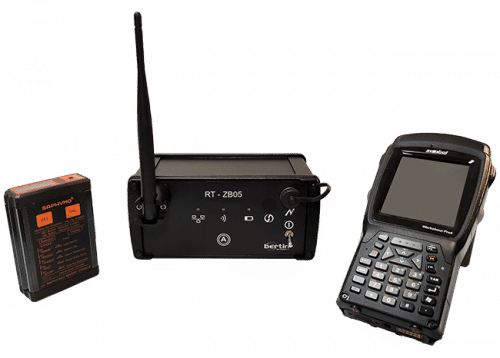

Each Skydose system is composed of one PDA, which monitor 1 to 8 Saphydose ?i RT teledosimeters thanks to a Zigbee-type mesh network (2,4 GHz.).

Flexible & robust, the mesh network can reliably cover a whole infrastructure (a nuclear installation, for example) thanks to one or more RT-ZB05 dedicated routers.

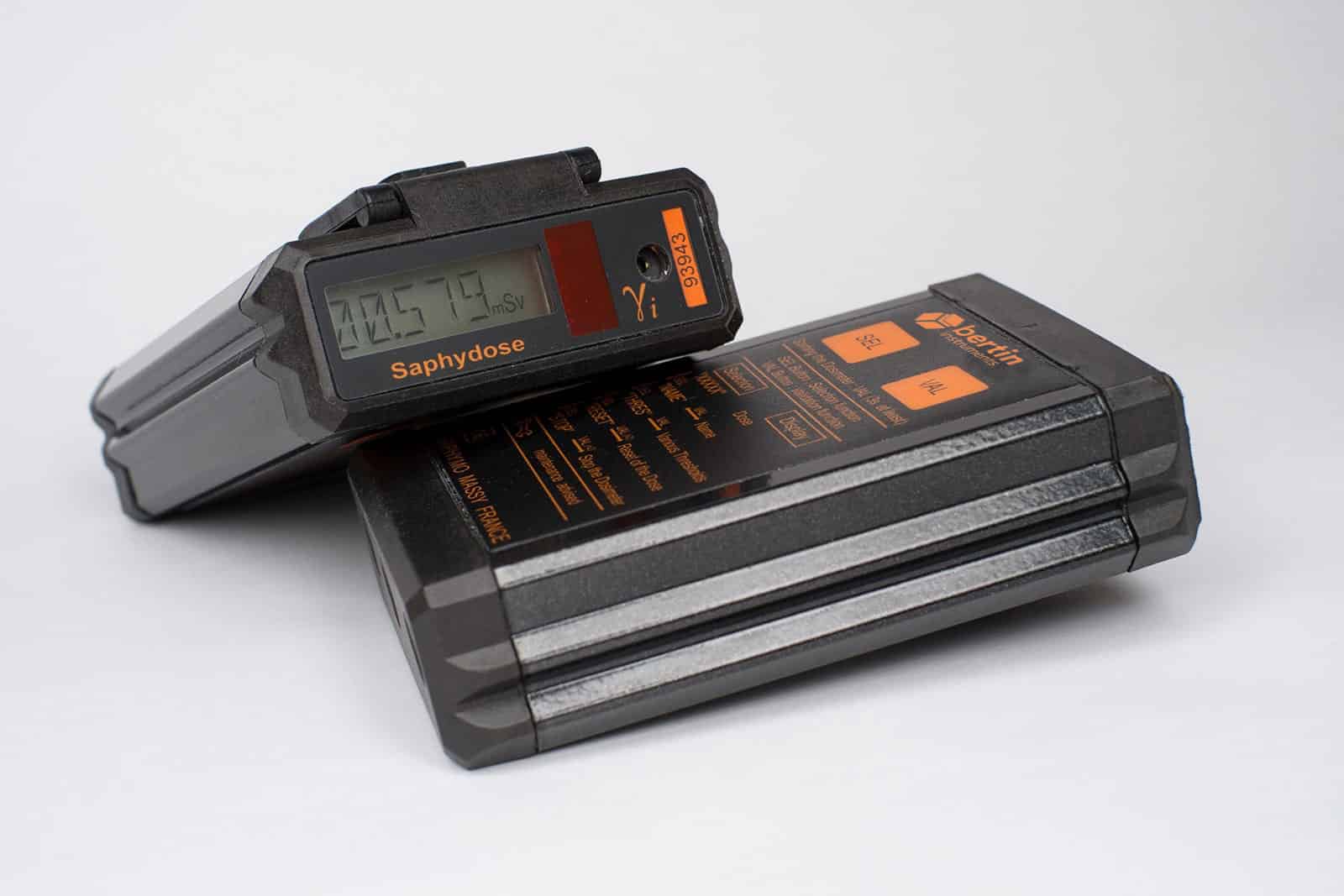

The Saphydose ?i RT teledosimeter is a radio version of the Saphydose ?i, using the same reliable dual silicon diode for measuring X & Gamma rays, and having a measurement range of dose equivalent from 1 µSv. to 9,999.9 mSv.

The Saphydose ?i RT teledosimeter is a radio version of the Saphydose ?i, using the same reliable dual silicon diode for measuring X & Gamma rays, and having a measurement range of dose equivalent from 1 µSv. to 9,999.9 mSv. Its protection against exposure to electromagnetic fields is very high, with a 30A/m to 50Hz immunity.

• dosimetry management software

• configuration software of Saphydose ?i RT teledosimeters

• dosimeter & teledosimeter reader

• Dosimeter reader
