CamSight, thermal camera module

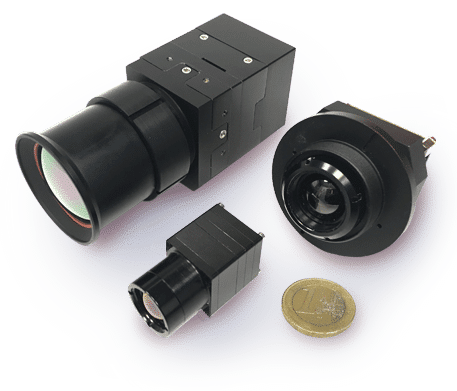

CamSight is a lightweight, compact thermal camera module, that can be integrated into any complex optronic system for a variety of observation, surveillance and protection applications. Available in three versions, CamSight LP (Low Power), CamSight HD (High Definition) and CamSight LS (Low SWaP), it can also be tailored to specific requirements, using CamSight OnDemand.

Designed for integrators and Original Equipment Manufacturers (OEMs), CamSight is a family of uncooled, thermal camera modules for complex optronic systems.

Compact, rugged and energy efficient, CamSight infrared thermal cameras meet all integration requirements, and are available in three versions:

  • CamSight LP, Low Power thermal camera
  • CamSight HD, High Definition infrared camera
  • CamSight LS, Low SWaP thermal camera module, with small footprint and low power consumption.

The versatile CamSight infrared camera can also be customized on request, to meet customer needs or the specifics of the receiver optronic systems: wide range of lenses with different Field Of View (FOV) and DRI capabilities, many video outputs.

Designed to meet the low SWaP requirements of integrators, these thermal camera modules are compatible with a wide range of land, naval and air applications that require optimal day and night vision performance.

  • Perimeter surveillance for military vehicles
  • Driver Vision Enhancement, vehicle mobility, personnel protection
  • Monitoring and protection of key assets, sensitive sites and critical infrastructures
  • Local Situational Awareness improvement
  • On-board observation on UAV and UGV
  • Observation for dismounted soldiers (night/day vision enhancer, weapon sight…)

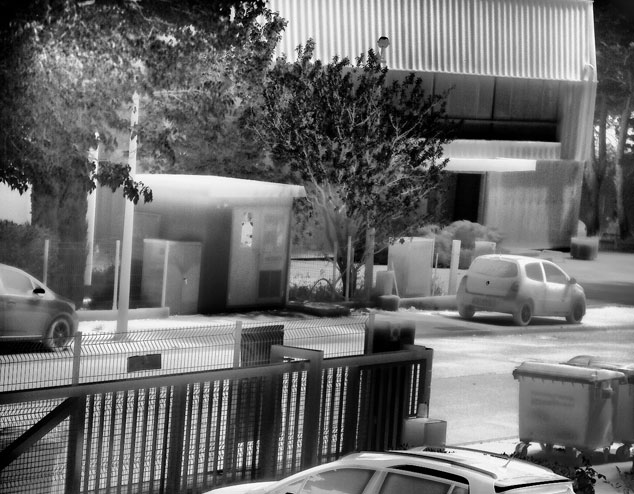

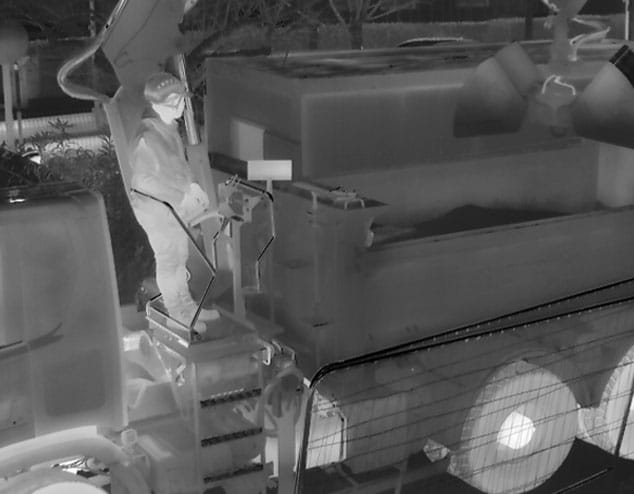

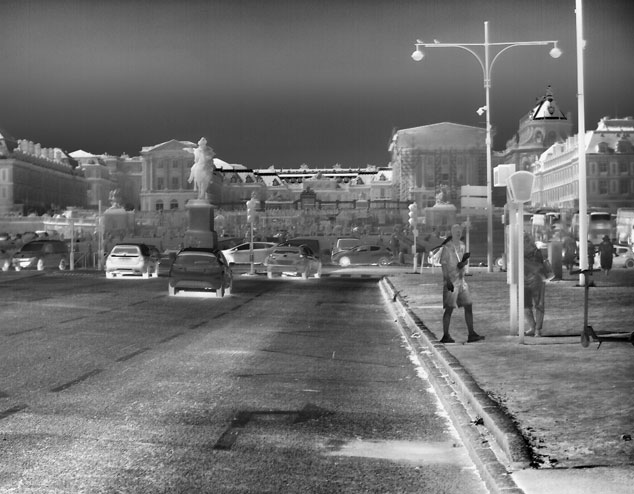

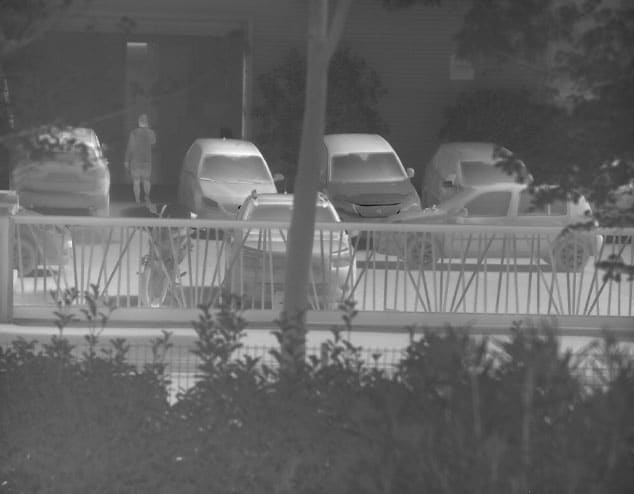

Based on an uncooled infrared technology, CamSight thermal camera modules deliver high quality images, with low latency and in record time. These thermal cameras thus offer the best possible day and night vision, in a compact design suitable for integrators and for all critical, civil and military missions.

CamSight LP

640 x 480
17 µm
NETD < 30mK

CamSight HD

1280 x 1024
12 µm
NETD < 50mK

CamSight LS

640 x 480
12 µm
NETD < 50mK

CamSight on-demand

For all specific needs.

Sensor
PICO GEN2(S) (LYNRED)
640 x 480@17µm pitch



Bandwidth
LWIR (8-12µm)



HFoV (°)
90 / 57 / 32 / 25 / 18 / 11 / 10 / 8
(More on demand)



NETD – CamSight® LP
< 50mK @ F#1/1.0

NETD – CamSight® LPHS
< 30mK @ F#1/1.0



Consumption
< 1W



Video outputs (Digital and/or analog)
SD-SDI / Progressive PAL
GigE Vision



Time to image
< 1.2s



Dimensions
OEM version: 46 x 46 x 29mm
Casing version: 60 x 60 x 65mm



Weight
OEM version: 60g
Casing version: 188g

Sensor
ATTO GEN2 (by LYNRED)
1280 x 1024@12µm pitch



Bandwidth
LWIR (8-12µm)



HFoV (°)
95 / 56 / 46 / 28 / 24 / 17 / 15
(More on demand)

NETD
< 50mK @ F#1/1.0



Consumption
< 2.8W



Video outputs
HD-SDI / GigE Vision

Time to image
< 3s



Dimensions
OEM: 31.5 x 40 x 40mm
Quick Connect: 58.3 x 40 x 40mm



Weight
OEM: 83g
Quick Connect: 128g

Sensor
ATTO (by LYNRED)
640 x 480 @12µm pitch



Bandwidth
LWIR (8-12µm)



HFoV (°)
112 / 86 / 61 / 50 / 32 / 18 / 13
(More on demand)

NETD
< 50mK @ F# 1/1.0



Consumption
0.75W*
*Parallel bus 25°C & 25Hz



Video outputs
SD-SDI / PAL / MIPI CSI2 / GigE Vision

Time to image
< 1s



Dimensions
22 x 22 x 15.5mm



Weight
9g

Reasons to choose CamSight, thermal camera module

High image quality

Small size, weight and energy consumption

From narrow to wide fields of view

Large selection of lenses for different FOV/DRI.

Dedicated to manufacturers

Various output formats, algorithms and parameters can be controlled during operation.

Designed and made in France
