FusionSight - Night & day vision enhancer for threat and target accurate detection

FusionSight – Night Vision Device

FusionSight is a day and night vision enhancer that provides intelligent fusion capabilities for accurate threat and target detection, in challenging environments.

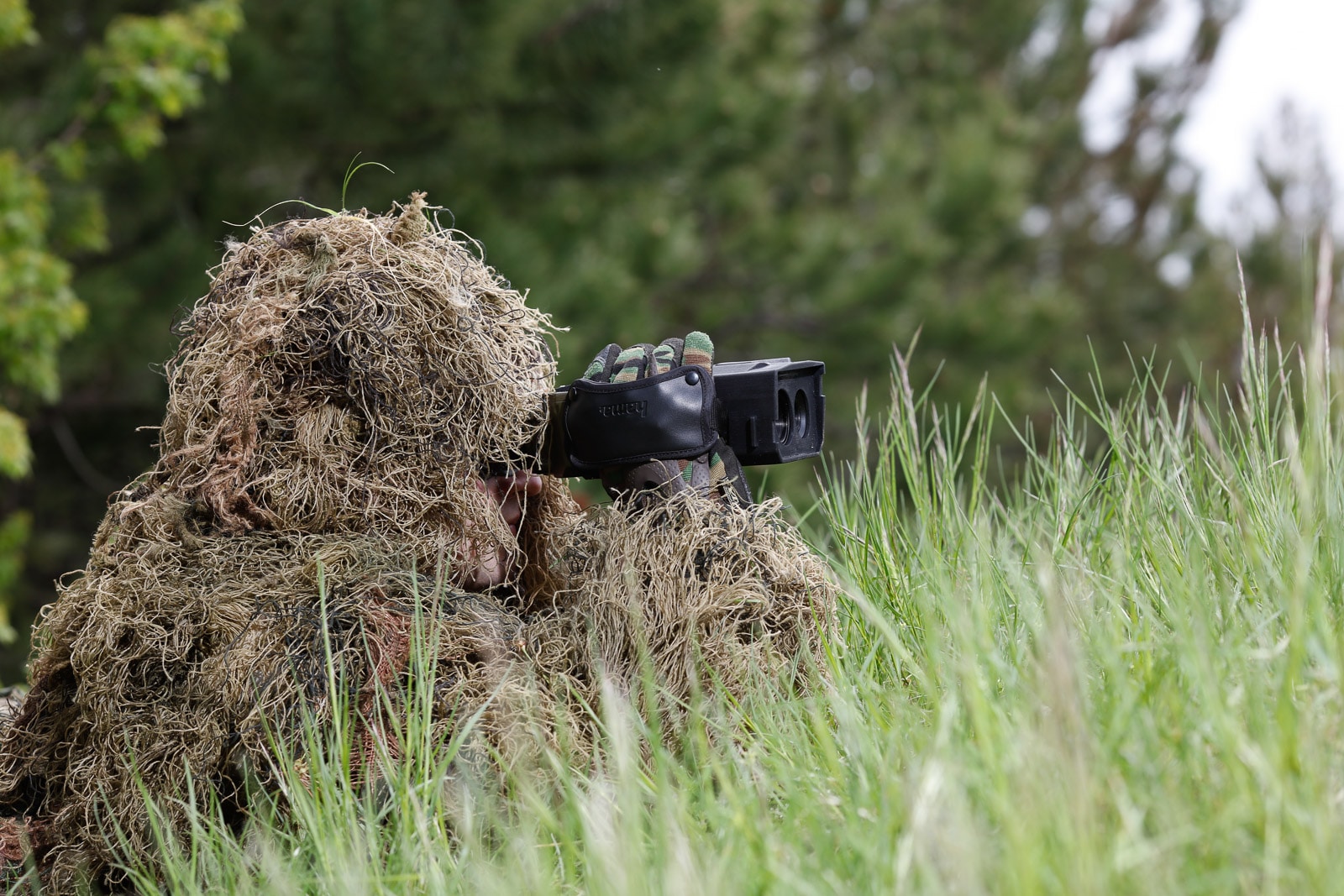

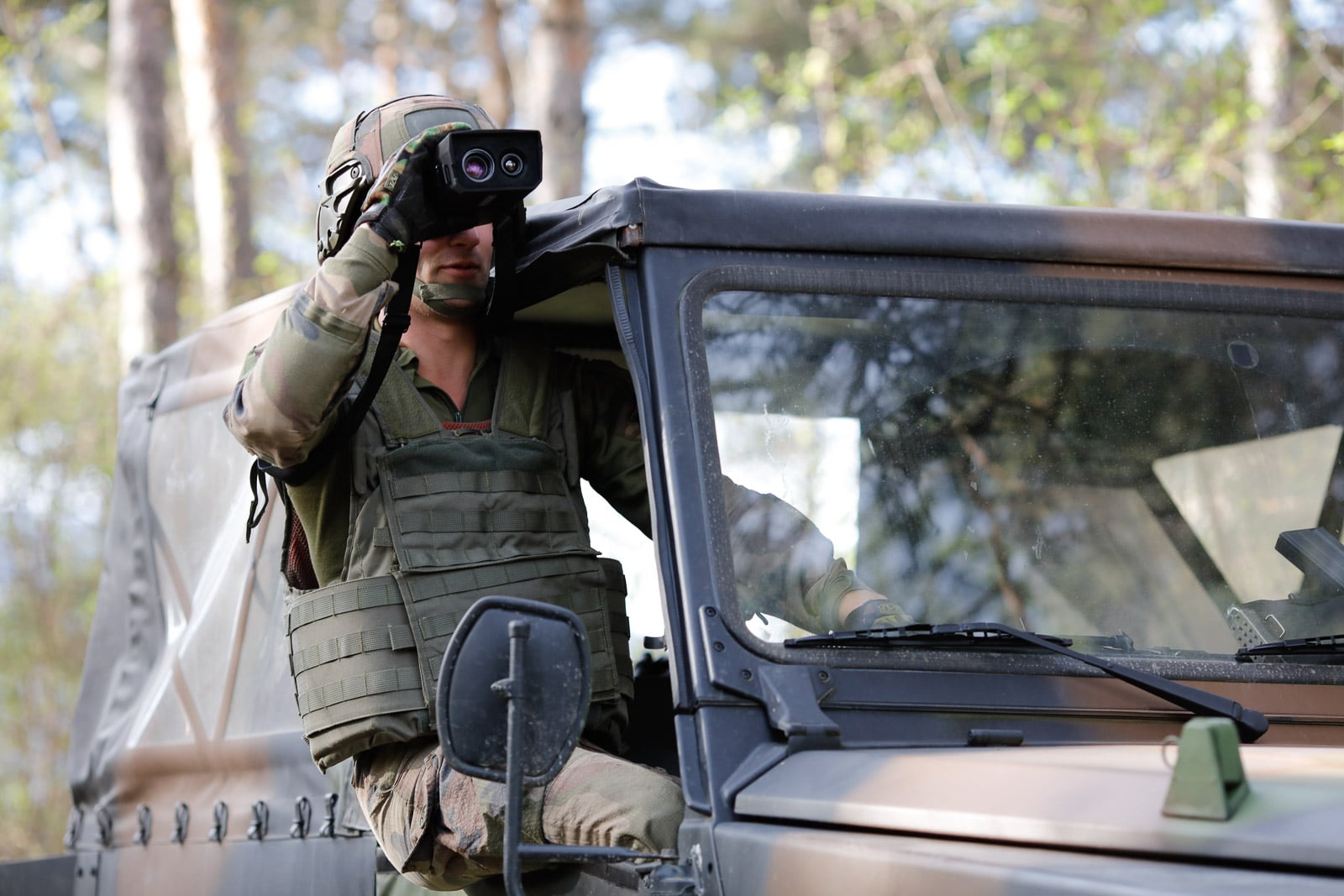

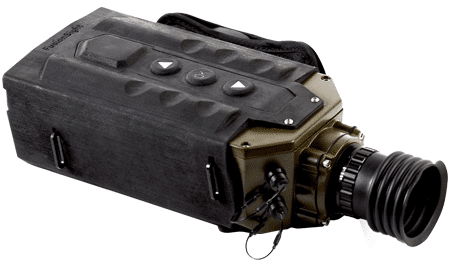

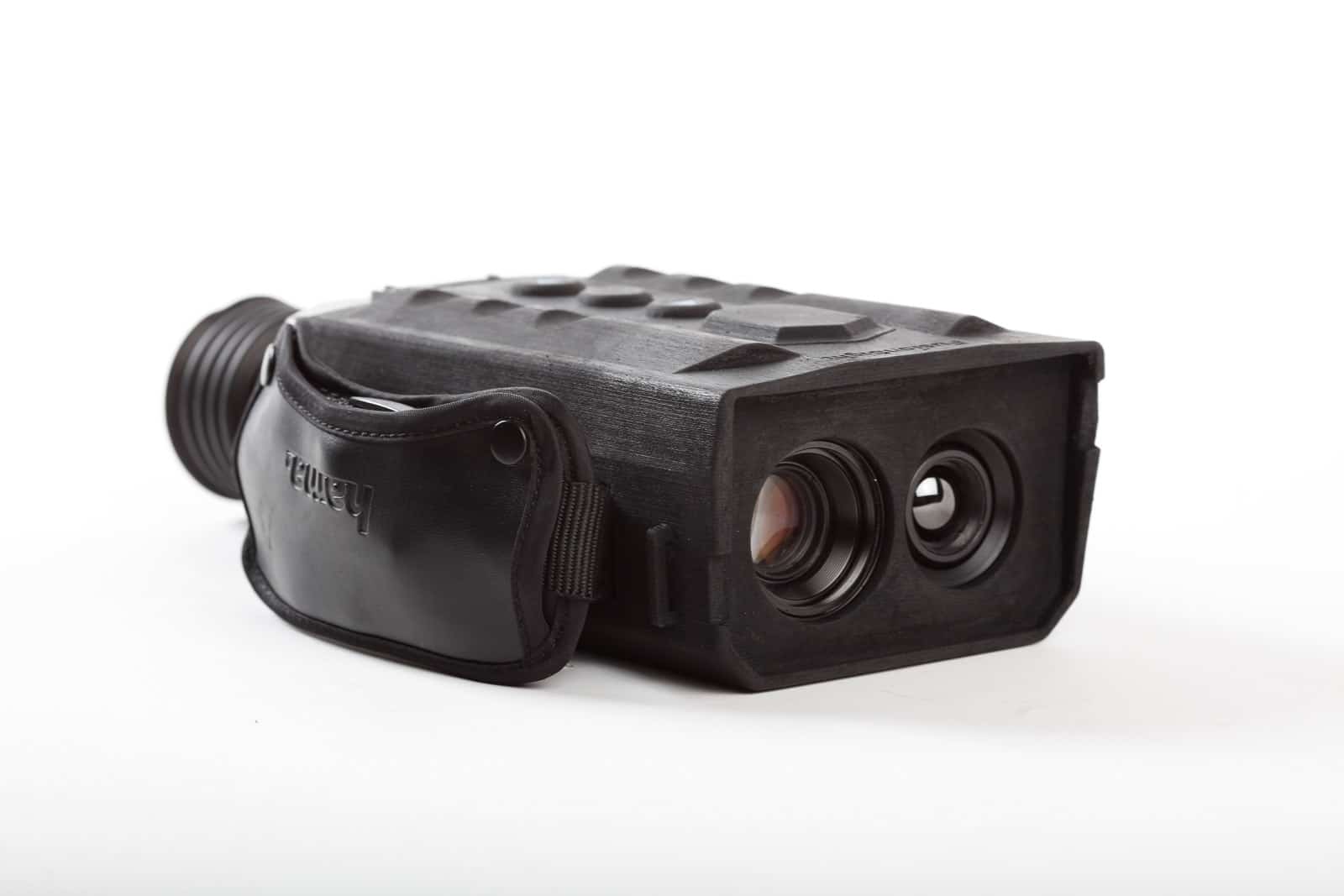

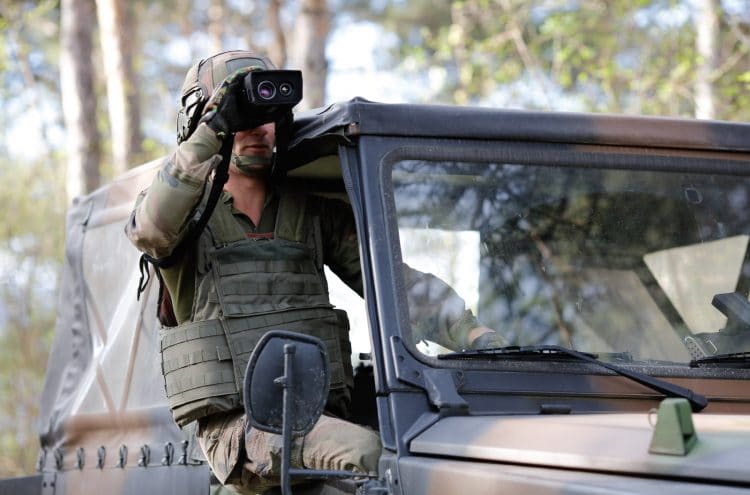

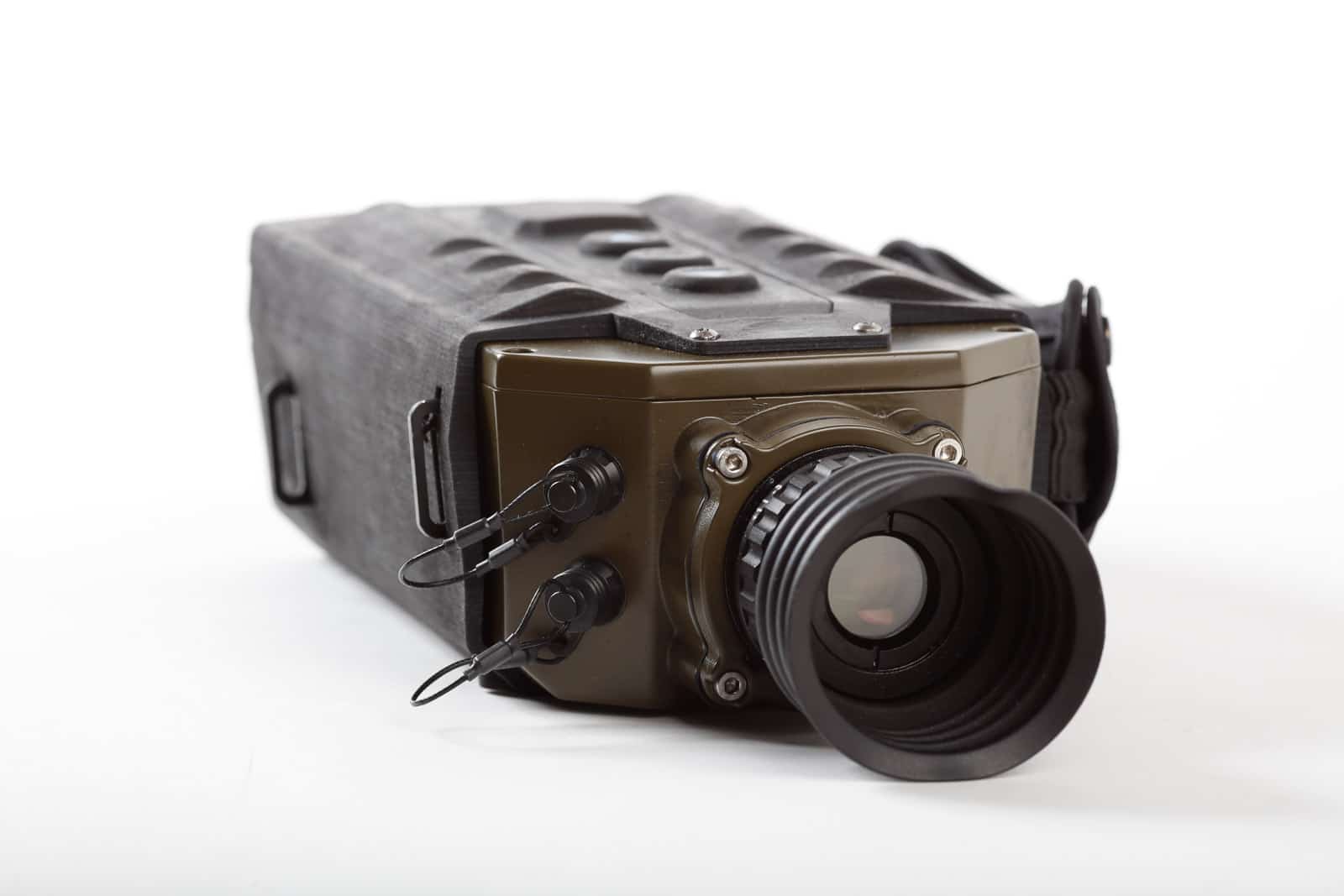

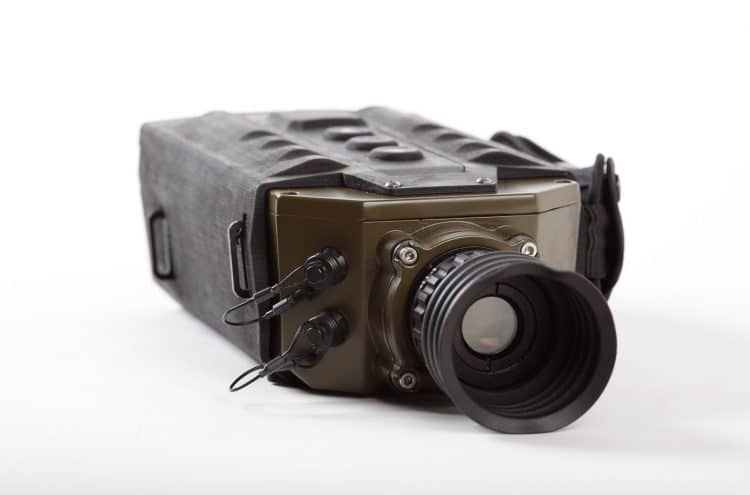

FusionSight is a lightweight monocular that provides separate or combined thermal and color low light level images for day and night vision applications, civilian or military. Designed to meet the needs of infantry squads and special forces, this compact, intuitive day and night vision device excels in the field, by revealing hidden or camouflaged enemies.

Join the Night Vision Technology LinkedIn group >>

Enhancing threat and target detection capabilities, by day and night, FusionSight is also a key reference for search and rescue, long-term surveillance missions, for police and civil security forces. Designed with the needs of military personnel in mind, the FusionSight day and night vision enhancer provides users with invaluable visual support, even in limited visibility conditions. Fully digital, FusionSight allows images to be recorded and transmitted in real time via multiple interfaces, for extended operations.

When darkness becomes your ally.

FusionSight is the very first digital day/night vision device to provide intelligent fusion capability to detect threats and targets in all operational conditions.

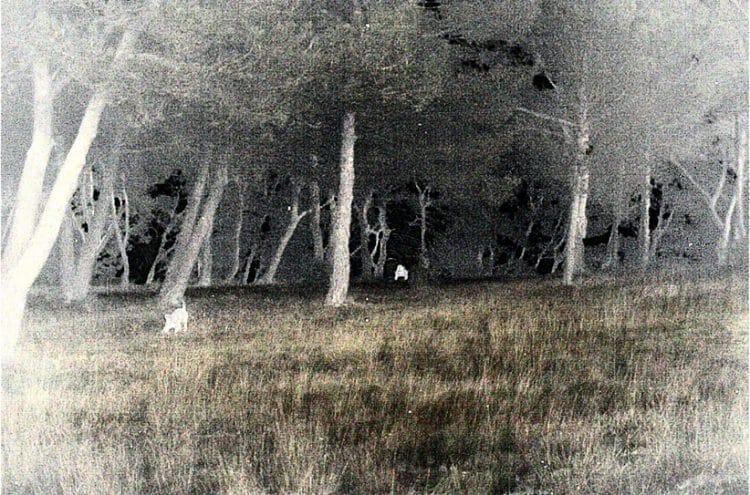

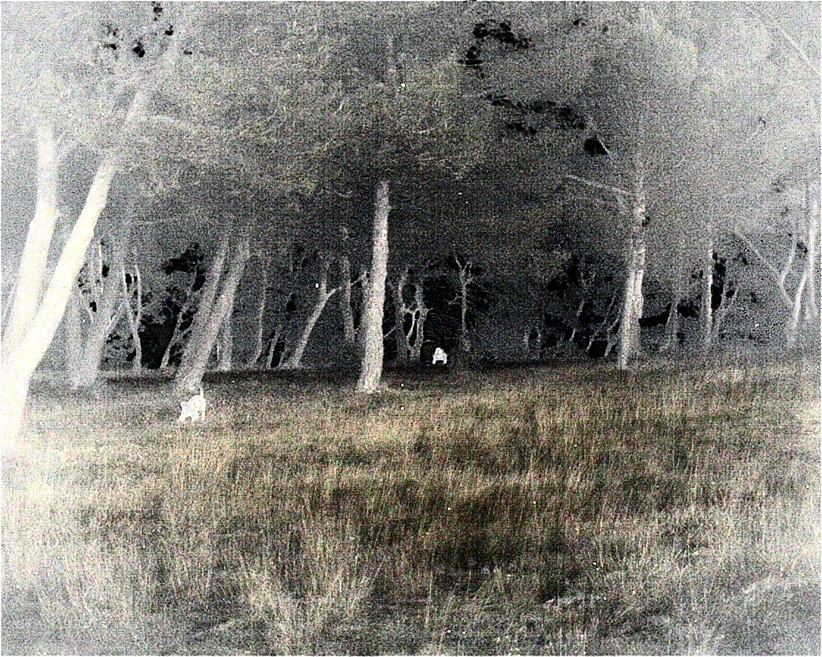

FusionSight, the day/night vision monocular, provides visible (color) and thermal image fusion capability. A first image is provided by a visible imaging sensor (SXGA) in low light conditions, without additional lighting. A second image is then provided by a thermal imaging sensor (VGA), that is capable of detecting threats and targets in all conditions (up to night 5).

Embedded image processing automatically selects key information from each sensor to provide users with enhanced day/night vision and delivers these images in digital format. The FusionSight technology is the result of advanced research in pixel-by-pixel frequency analysis algorithms that select a mix of pixels from both sensors, to provide the best information from both worlds – visible and infrared.

Get a quote for
FusionSight – Night Vision Device

Get a quote

Thermal sensor

  • UC (8-12΅m)
  • 640 x 480 @17΅m

Visible sensor

  • CMOS low light colour
  • 1280 x 1024p

Display

  • OLED Full HD
  • 1280 x 1024
  • 25Hz

Night FOV

  • W: 32° / N: 8°

Day FOV

  • W: 29° / N: 7.25°

Autonomy

  • 7 hours

Weight

  • 990 g

Embedded sensors

  • Compass
  • 9-axes IMU and GPS

Embedded functions

  • Image recording
  • Up & down wireless com

Video output

  • 25Hz HD colour



Download the datasheet

State-of-the-art vision technologies

  • Full digital
  • All-in-one with three viewing modes – colour low light, thermal and smart fusion
  • Working night and day, detection up to 3 km
  • Users can magnify details thanks to x8 digital zoom
  • Includes a unique colour low light sensor (powered by Photonis)

User comfort

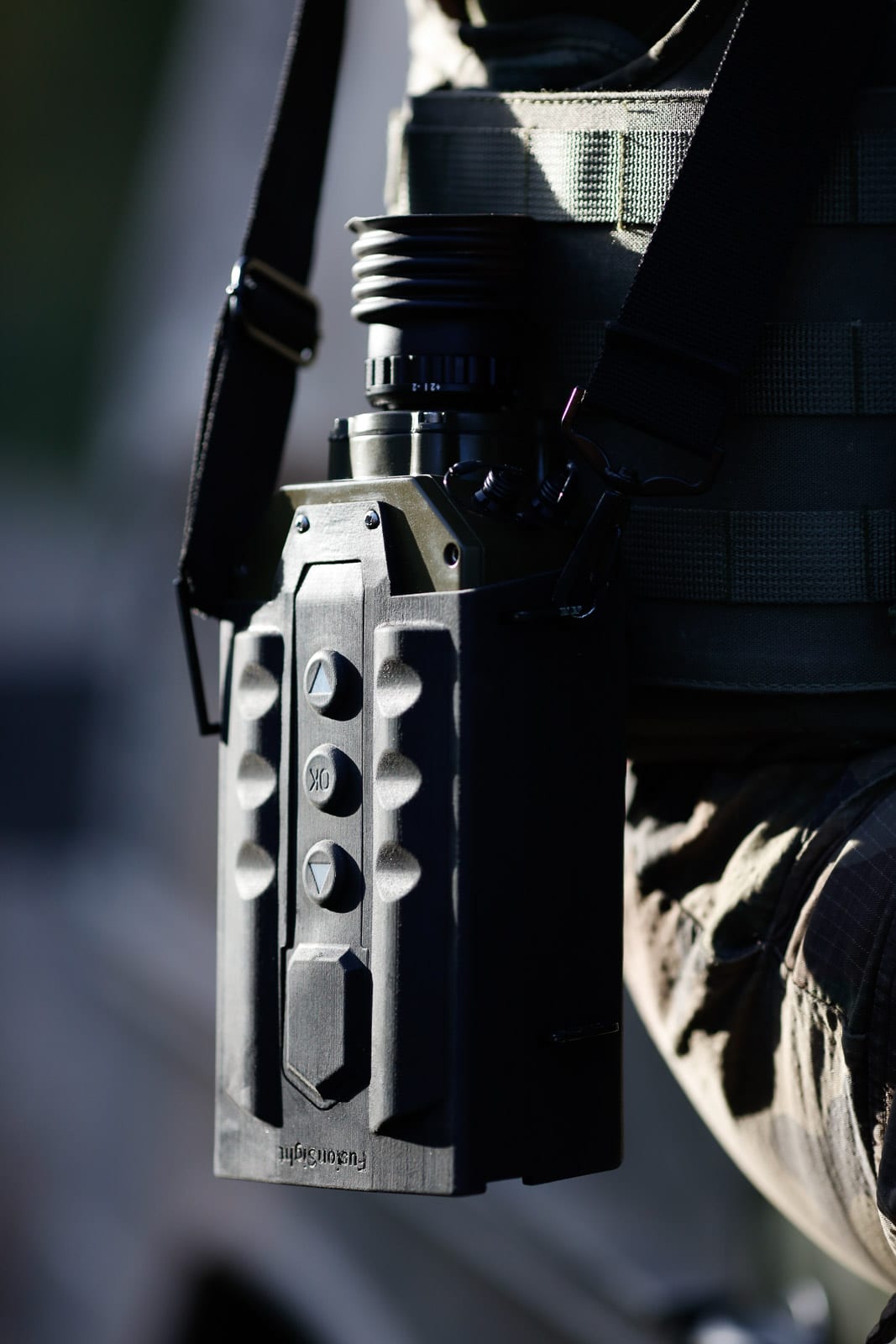

  • Ergonomic design inspired by user needs
  • Lightweight handheld device (less than 1 kg)
  • High autonomy (7 hours)

Valuable additional functions

  • Image recording and HD video output for proof collection
  • It comes with a GPS and a 9-axes Inertial Measurement Unit.

FusionSight is the industry’s first handheld device that features smart colour fusion of images. The first image is recorded by a state-of-the-art colour imaging sensor (powered by PHOTONIS) that provides a color image in extreme low light conditions (~10 mlx) without additional illumination.

The second image is recorded by a high-resolution thermal imaging sensor that can detect under all night conditions (up to night 5). The embedded real-time image processor automatically selects key information from each sensor, allowing users to see in the dark at night even better than in broad daylight, and to record and save images as digital files.

The smart digital fusion also overcomes the traditional limitations of each individual sensor: FusionSight can detect through smoke, other obscurants and in deep night conditions with a thermal sensor, while providing an optical color low light image that detects through windows with sufficient resolution for positive identification thanks to the color imaging sensor.

  • Tripod
  • Cable kit
  • Adapter for standard battery
  • Operator screen

Reasons to choose FusionSight – Night Vision Device

Full Digital, all-in-one device with three viewing modes - colour low light, thermal, smart fusion

Night & Day Detection, Recognition, Identification, up to 3 km

Image recording, HD video output, wireless up & down communication

GPS & inertial Measuring unit (iMu) for accurate location
