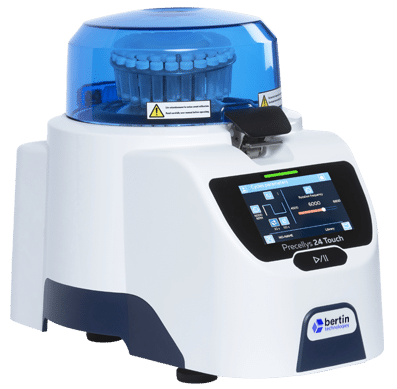

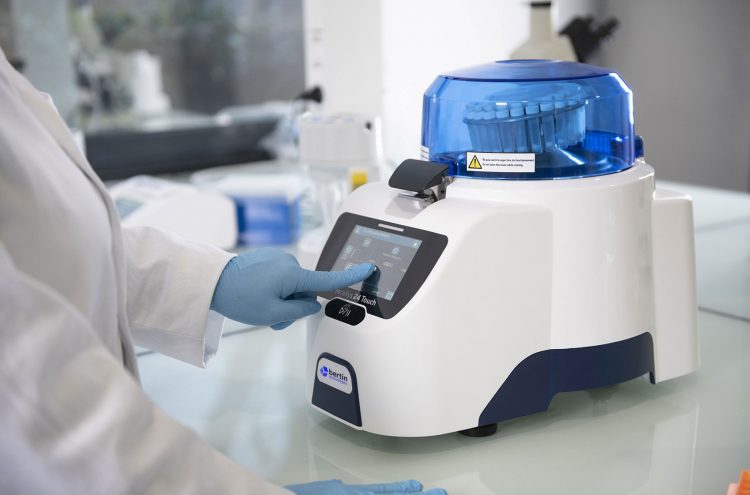

Precellys 24 Touch Homogenizer

Precellys® 24 Touch is an intuitive tissue homogenizer to prepare any kind of biological sample.

Precellys® 24 Touch is the ideal lab instrument to homogenize any kind of biological sample, from the softest to the hardest, regardless of its origin (animal tissues, plant tissues, microorganisms…). It can treat up to 24 samples at a time and has been validated on more than 1,500 different samples: from brain, muscle and heart samples, to very hard material such as bones, hair and seeds.

The intuitive touchscreen interface of Precellys® 24 Touch makes it really easy to use. Thanks to its exclusive vacuum-based tube locking system and its specific design, Precellys® 24 Touch is compliant with safety requirements of the harshest lab environments, such as BSL3.

With its powerful 3D movement, Precellys® 24 Touch provides high energy to the beads contained in the tubes, allowing the homogenization of the samples in a few seconds (~30 sec) at speeds ranging from 4500 to 6800 rpm. Samples can then be processed for further analysis amongst a wide variety of techniques dedicated to DNA/RNA (PCR, electrophoresis, NGS, chips, etc), protein (blotting, mass spectrometry, etc.), or metabolites analyses (chromatography, etc.)

Watch the other videos ?

Get a quote for
Precellys 24 Touch Homogenizer

Get a quote

Capacity

  • 1 to 24 tubes of 2 mL
  • 1 to 24 tubes of 0.5 mL

Speed range

  •  4,500 rpm to 6,800 rpm (by increments of 100 rpm)

Programs

  •  Unlimited

Number of cycles

  •  Up to 10

Cycles time

  •  Up to 90 sec

Pause between cycles

  • 120 sec

Weight

  • 23 kg / 51 lb

Dimensions

  • L: 287 mm, W: 408 mm, H: 390 mm, (515mm with opened lid)

Power requirement

  • 90 – 250VAC / 50-60 Hz, Power:1 kVA

Noise

  • Less than 70dB

Norms

  • CE, FCC PART 15

Catalog number

  • P002391-P24T0-A.0



Download the user guide

  • Efficient: powerful 3D motion, up to 6,800 rpm
  • Easy to use: touchscreen and exclusive tube locking system
  • Reproducible: validated protocols available online
  • High quality: robust, ergonomic & safe

Precellys ® 24 Touch technology presents three main features:

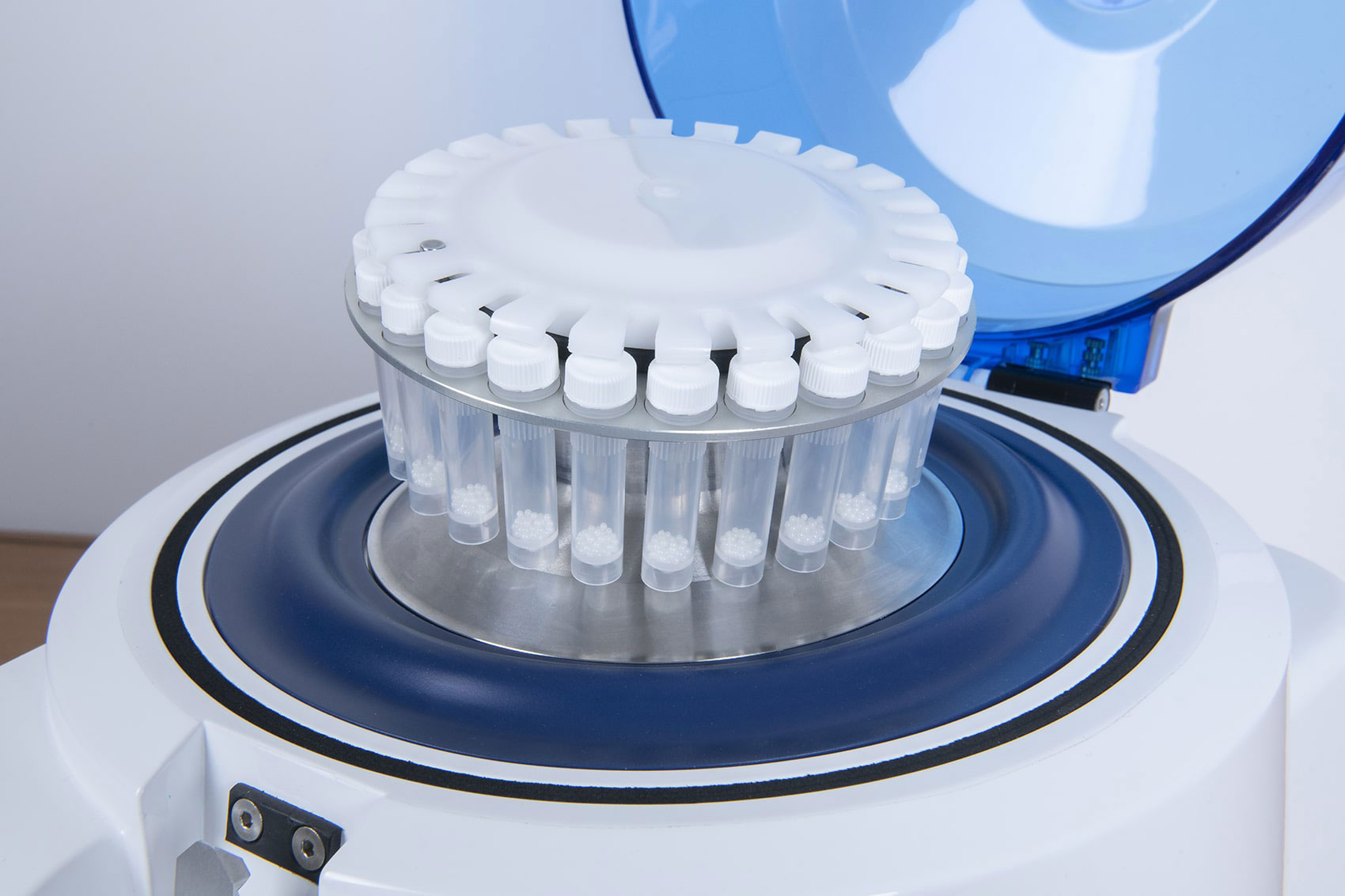

1 – The 8-figure 3D-motion (multi-directional) movement of the tubes: the same high level of energy given to the beads inside each tube ensures equal homogenization efficiency for all processed samples (up to 24 at once). Thanks to this complex movement, the Precellys® 24 Touch can disrupt any type of sample (even the hardest) in seconds with perfect reproducibility while limiting heat generation.

2 – The patented vacuum-based tube locking system during the process: thanks to its design, Precellys® 24 Touch is compliant with safety requirements of the harshest lab environments, such as BSL3.

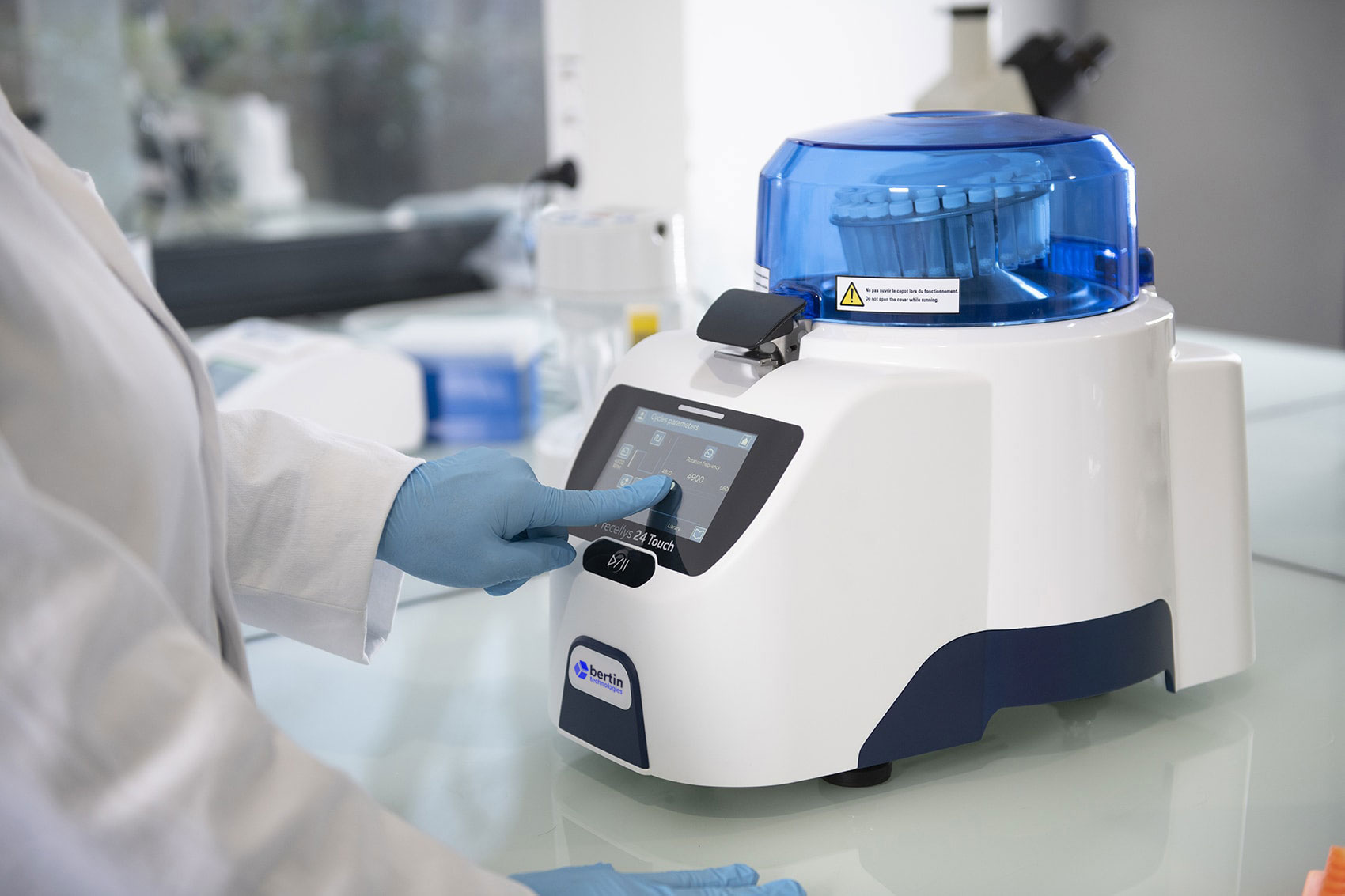

3 – The intuitive touchscreen: thanks to it, the protocol settings can be chosen in a few seconds.

    • What are the volumes of the tubes compatible with your instruments?
    • Is it possible to create my own lysis matrix?
    • What are the optimal parameters for my sample (beads, speed and tube volume)?
    • How can I prevent heat generation and keep a constant temperature of 4°C (+39°F)?

Read the answers and see the other questions

Reasons to choose Precellys 24 Touch Homogenizer

The ease of use of Precellys 24 Touch is so incredible that programming and launching runs is really intuitive and doesn’t require any specific training.

A high level scientific support available online 24/7 on our Application Center, or through our dedicated Application Specialists.

The versatility of the Precellys Lysing kit range ensures that for every sample type there is a corresponding lysing kit.

15 years of expertise in sample preparation and more than 30,000 scientists who use the Precellys worldwide.

A worldwide distribution network to support you wherever you are.
