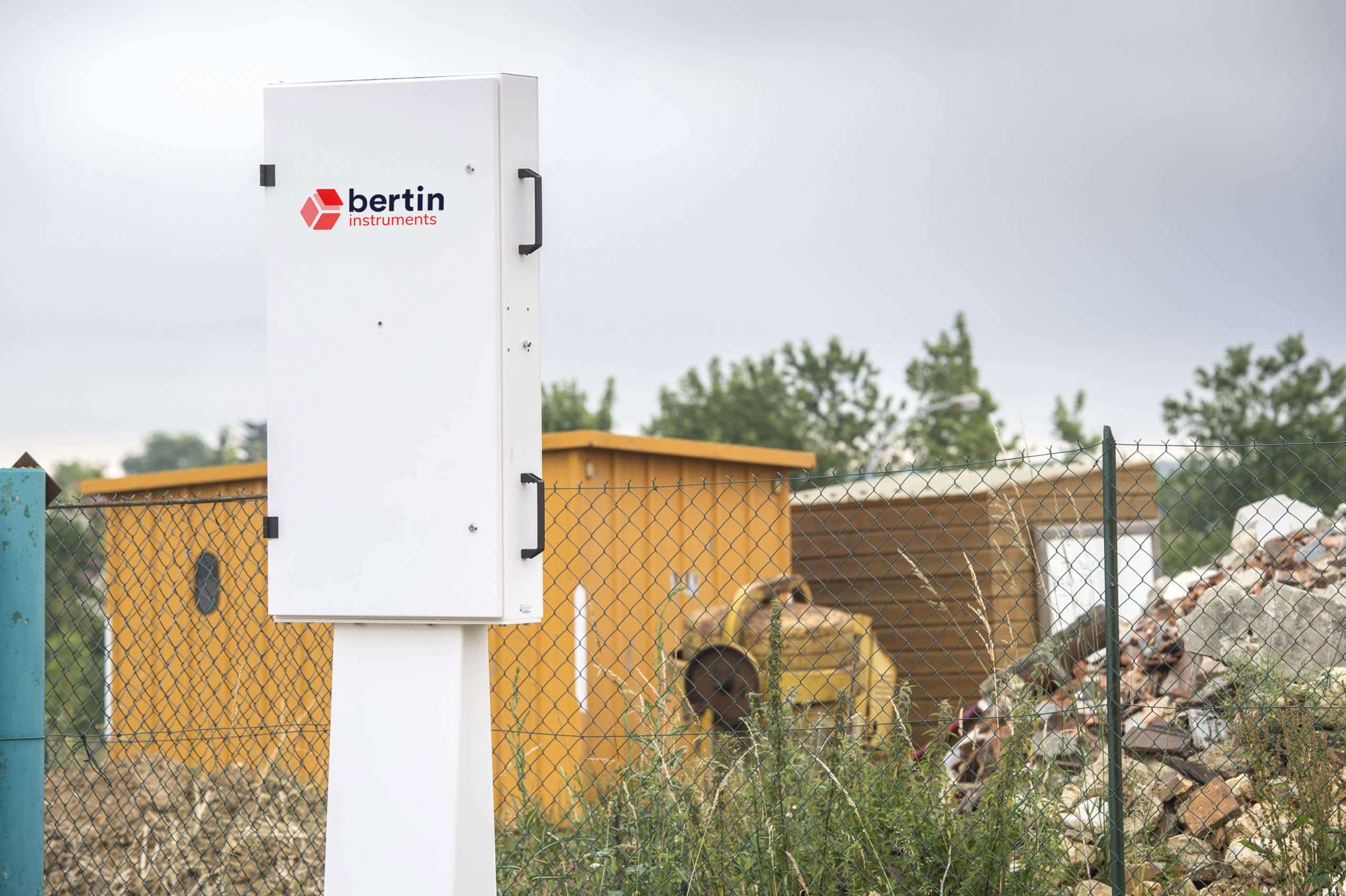

SaphyGATE G

Detector type:

Plastic scintillator detector PVT (Polyvinyltoluene) � 25 liters / 6,6 gal

Energy range:

From 30 keV to 7 MeV

Working temperature:

From -20�C to +50�C (�4�F to +122�F)

Enclosure:

Hermetic aluminium box, EMC shielded

Central unit:

Industrial PC with MS Windows and TFT XGA 12� colored touch-screen

Protection grade:

IP 65

Standards:

Compliant with international standards including IEC 62022

Dimensions:

1500 x 750 x 320 mm (59�x 29�x 13�)

Weight:

About 400kg (882 lb) with lead shields and stand

Performance:

The new SaphyGATE G radiation portal monitor allows for the detection of any radioactive sources, even in case of low radiations. Its adaptive alarm threshold and alarm classification functions ensure the discrimination of natural and artificial radiation.

Accuracy:

SaphyGATE G is based on an innovative algorithm, designed to compensate the background attenuation caused by the vehicle driving through. This feature allows to perform a better radiation detection with a lower false alarm rate compared to other classical systems, even in case of small activity sources.

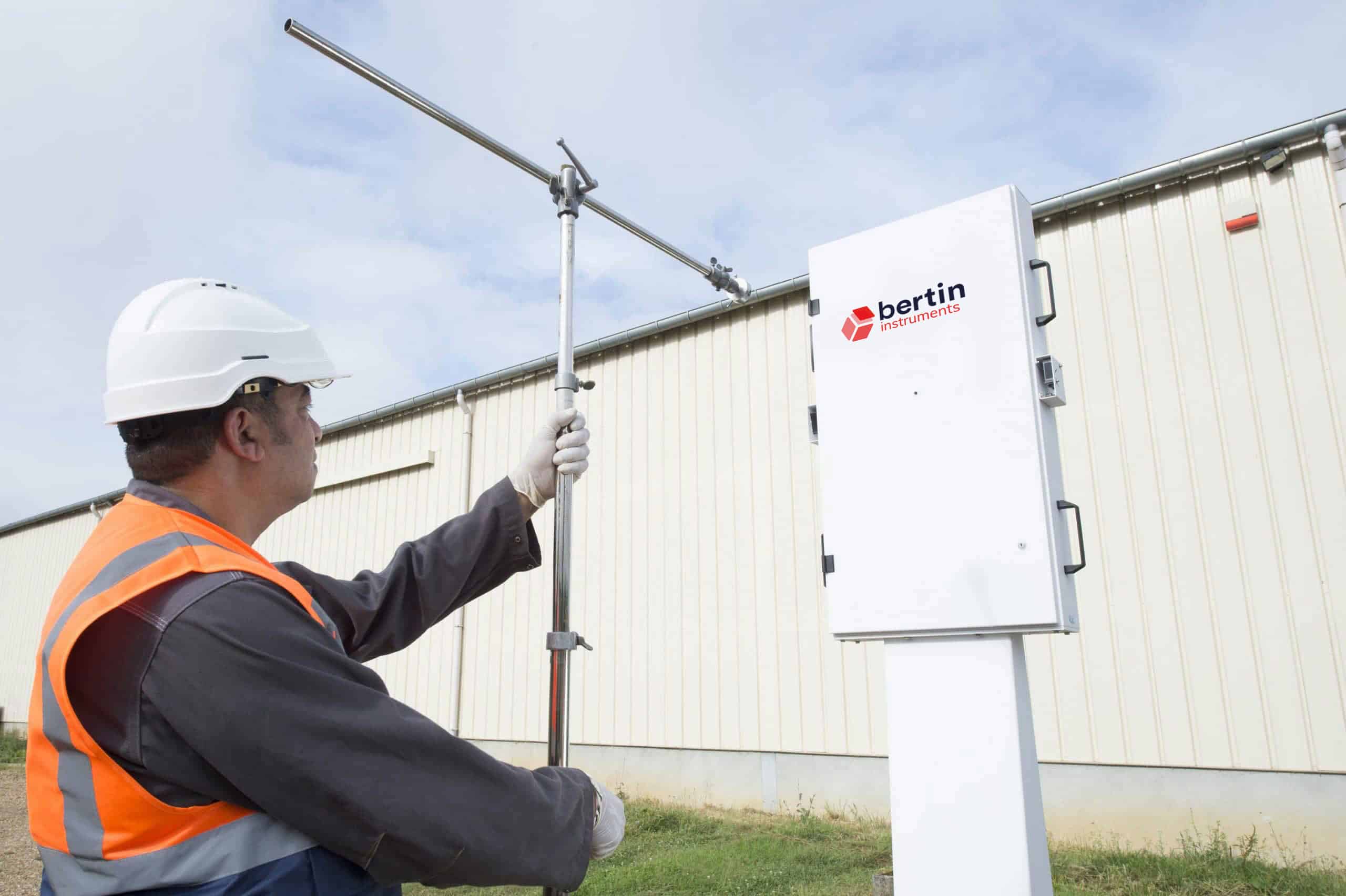

Ease of use:

Its specific design is adapted to facilitate maintenance operations (remote access with an internet connection). The intuitive touchscreen interface includes a supervision software.

Robustness:

The SaphyGATE G long lasting, robust steel feet and cabinet make it resistant for harsh environments.

SaphyGATE G includes high volume plastic scintillator detectors (PVT, 25L) providing a good sensitivity. Its hermetic EMC shielded aluminum box is protecting the detector to guarantee the robustness of the system (IP 65).

The system can be displayed in 2 different configurations including multiple detectors depending on the customer needs. The new enhanced real-time gamma energy distribution algorithm ensures background compensation to provide better performances.

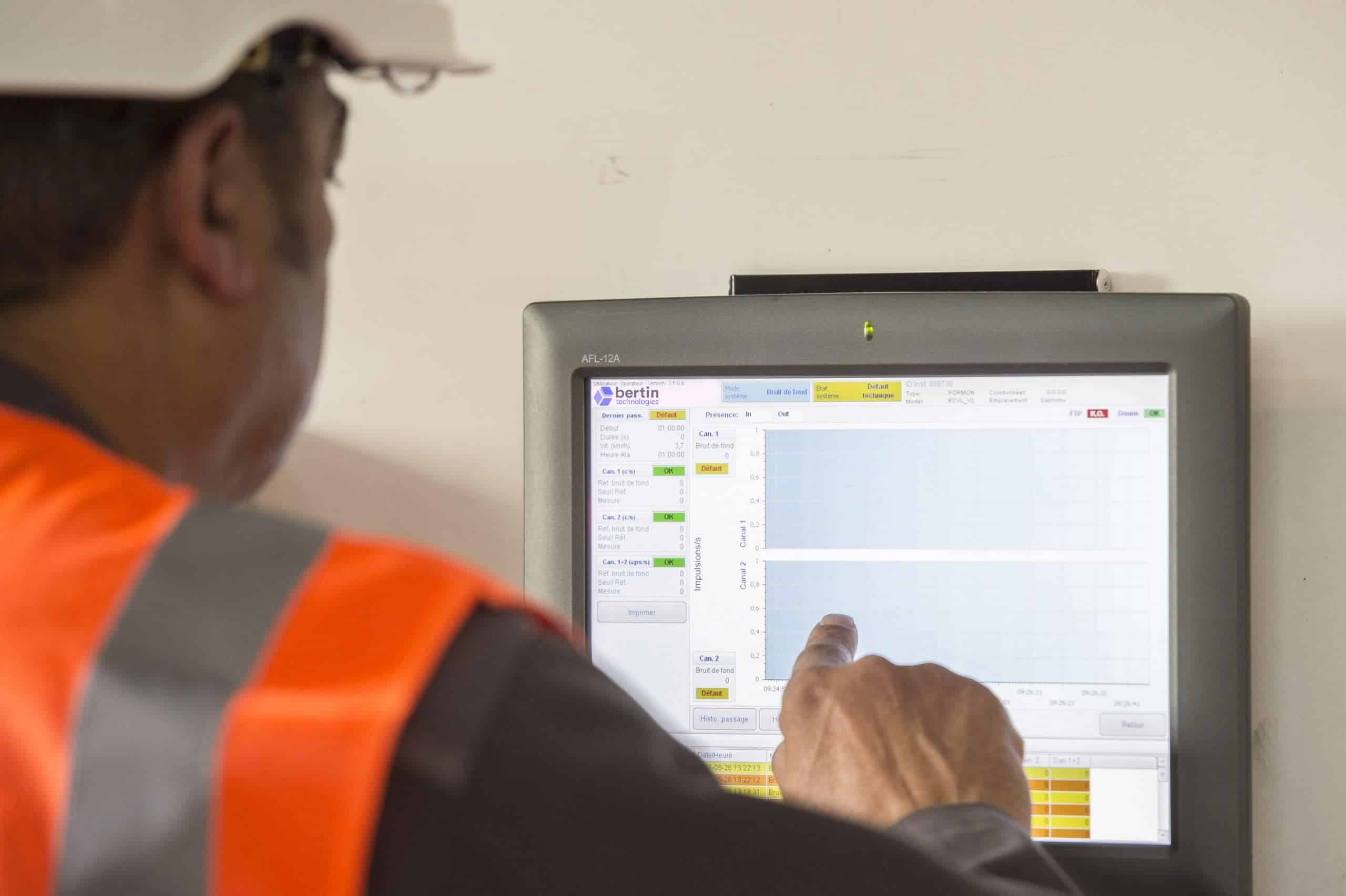

The supervision software delivered on a central unit is composed of a windows MC PC and a color touchscreen.

Alarm classification ( industrial, medical)
Cable extender kit: including a special module and cables for covering up to 300m of power supply and ethernet communication from the central unit to the detectors
External alarm signal: Outdoor signal for detector mounting with a visible and acustic alarm system
Traffic light: Outdoor traffic light, synchronized with the supervision software, with red and green light
GSM/SMS module: alarm reporting by sms
Train control option: Ultrasonic sensor for managing train controls, like wagon counting
Camera : High-performing outdoor camera for image acquisition of the controlled vehicle in day/night conditions
